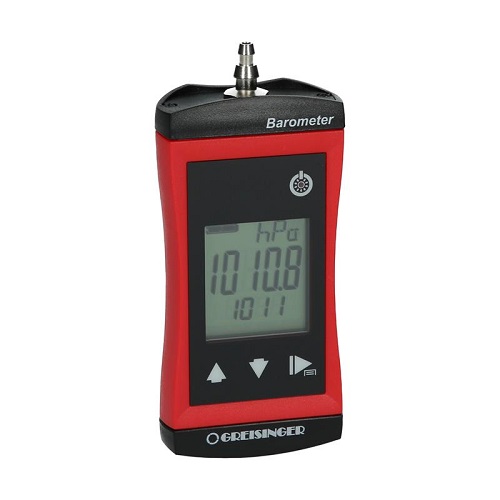

G 1111 Baro-/Vacuummeter - With integrated sensor
● Modern and functional design – pocket-size
● Excellent price/performance ratio
● 3-line backlit display / overhead display at the push of a button
● Waterproof (IP67)
● Robust, long battery operation time
● Easy to use universal pressure port with exchangeable connections
● High resolution and precision
● Very fast!
● Calibration options/ traceable
● Made in Germany
Barometer / Manometer for fast measurements in vacuum.
Fast and precise for example to test vacuum packaging machines: Just pack the instrument and read the display – finish! As well suitable for monitoring vacuum cast processes. With the min-value function, the result can be read even after taking the instrument out of the packaging.
NEW: Increased precision in vacuum even over varying temperature!
Barometer wide range, high resolution. Covers pneumatic range with resolution of 1 mbar! Can be used as relative instrument (use tare function at zero pressure) or as absolute instrument (starts at ambient pressure, e.g. 970 mbar = 970 hPa). NEW: UNIVERSAL-PORTs for use with a large range of pressure connections: Screw fitting, Quick-Connect, Push-Pull: All these types can be connected to the instrument! You have the choice, which connection is most practicable for you – instrument keeps the same. Increased resolution of 0.1 Pascal at high precision for finest pressure adjustments.
Connecting Options
① UT connection for tubes 6 x 1 mm (4 mm inner) and 8 x 1 mm (6 mm inner)
② QC6 Quick-Connect connection for 6 x 1 mm (Ø 4 mm inner) tubes
③ ST6 screw connection for 6 x 1 mm (Ø 4 mm inner) tubes
④ MCM mini male quick coupling for female quick coupling
Please select variant when ordering. Can be changed later
G 1111 | G 1114 | |
Description | Barometer / Vacuummeter | Barometer |
Measuring | Absolute pressure | |
Pressure connection | one tube connection, interchangeable with G1/8 universal port | |
Ranges / resolution | 0.0..1700.0 hPa (mbar) | 0..14000 hPa (mbar) |
Display units | hPa, mbar, PSI, mmHg (Torr | hPa, mbar, bar, PSI, mmHg (Torr) |
Measuring frequency | Slow: 2.5 measurements per second, Fast: 25 measurements per second | |
Precision typ. | ± 2 hPa (@ 5..30 °C) Option -VAC @ 0...20 hPa: ± 1 hPa (@ 10..30 °C) | ± 0.02 % FSS +/-0.1 % of value (@ 25 °C) |
Error max. (-20..50 °C) | ± 1.25 % FSS | ± 0.1 % FSS ± 0.5 % of value |
Max. overload | 3000 hPa abs. | 20000 hPa abs |
Display | 3-line segment LCD, additional symbols, illuminated (white, illumination time adjustable), overhead display on key press | |
Standard functions | Min / Max / Hold, auto-Power-Off-function / if activated, the product switches off automatically | |
Optional special functions | Sea level correction, NULL/Tare function, AVR: Averaging over 2 s / 5 s / 10 s | |
Adjustment | Zero point and slope | |
Housing | Break-proof ABS housing, protection rating IP67, dimensions L x W x H: 108 x 54 x 28 mm without pressure connection, weight: 140 g incl. battery | |
Operating conditions | -20 to +50 °C; 0 to 95 % r.h. temporarily 100 % r.h.) | |
Storage temperature | -20 to +70 °C | |
Power supply | 2 x AA battery (included in the scope of delivery), current consumption: ca. 1 mA (slow measurement SLO), battery life ca. 3000 h, battery indicator: 4-stage charge status indicator, note for low charge level: "BAT LO" |
